LR-MS-ECO

LR-MS-ECO

9 November 2023
LR-MS-ECO
LR-MS-ECO - Image 2
LR-MS-ECO - Image 3

LoRa Sensor Module
– Solar Panel or Turbine

1/4 sensor inputs: Built-in flowmeter + pluviometer, temperature, soil/air moisture sensors, tensiometer, water meter, pressure switch, level sensor

Internal battery rechargeable by turbine or solar panel


View

UGS : ND Categories: , , , , , , ,

Description

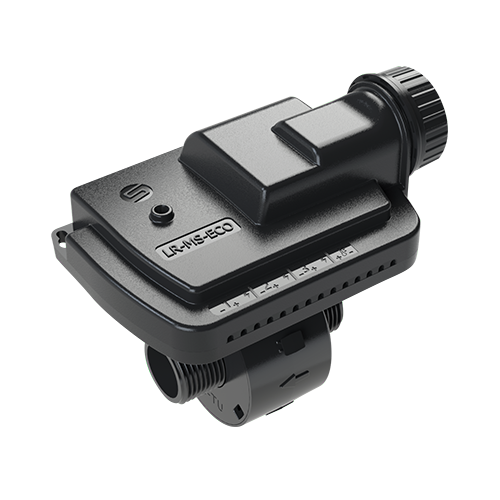

The LR-MS-ECO is a waterproof, battery-powered data acquisition module compatible with various sensors. It also features a rechargeable battery powered by a photovoltaic panel or turbine to extend the autonomy of the 9V battery. It can connect to a wide range of sensors, including weather probes (rain, air humidity, wind speed and temperature), water meters, soil moisture probes, tensiometers, level probes and many more. From the MySOLEM.com platform, you can view and extract your data and automate your watering based on the thresholds you have defined for each sensor.

Easy to use

Water Cons. Monitoring

Rechargeable Battery

Compact Solution

Real-Time Measurement

Irrigation Automation

Specifications

Reference:

LR-MS-ECO
Power supply:

9V alkaline battery type 6LR61 / 6AM6 and (integrated) rechargeable battery via mini solar panel
Connectivity:

Bluetooth® / LoRa™ radio communication
Required gateway:

LR-MB-10/30 or LR-BST-25/REACT or Irrigation station
Sensor input:

1 or 4 input(s): temperature (LR-MS-4 only), soil moisture, tensiometry, hygrometry, flow, rainfall, wind speed and level sensor inputs.
Managed via:

MySOLEM mobile app and online platform
Range:

800 meters
Protection:

anti-theft
